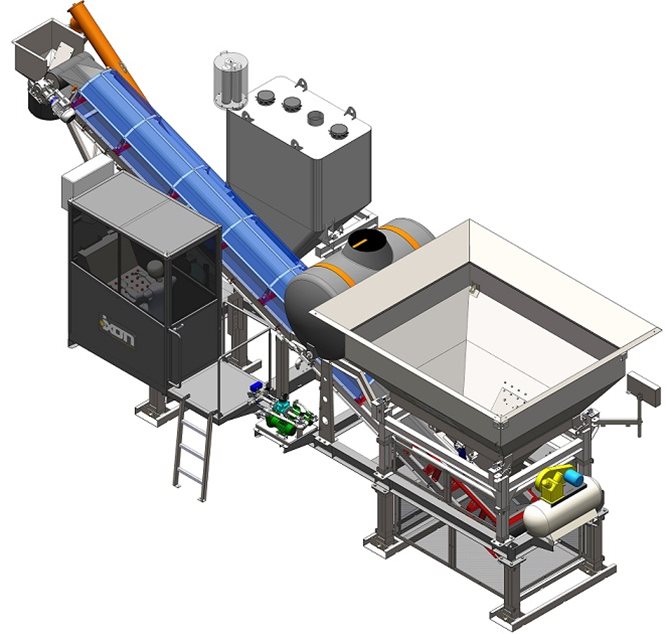

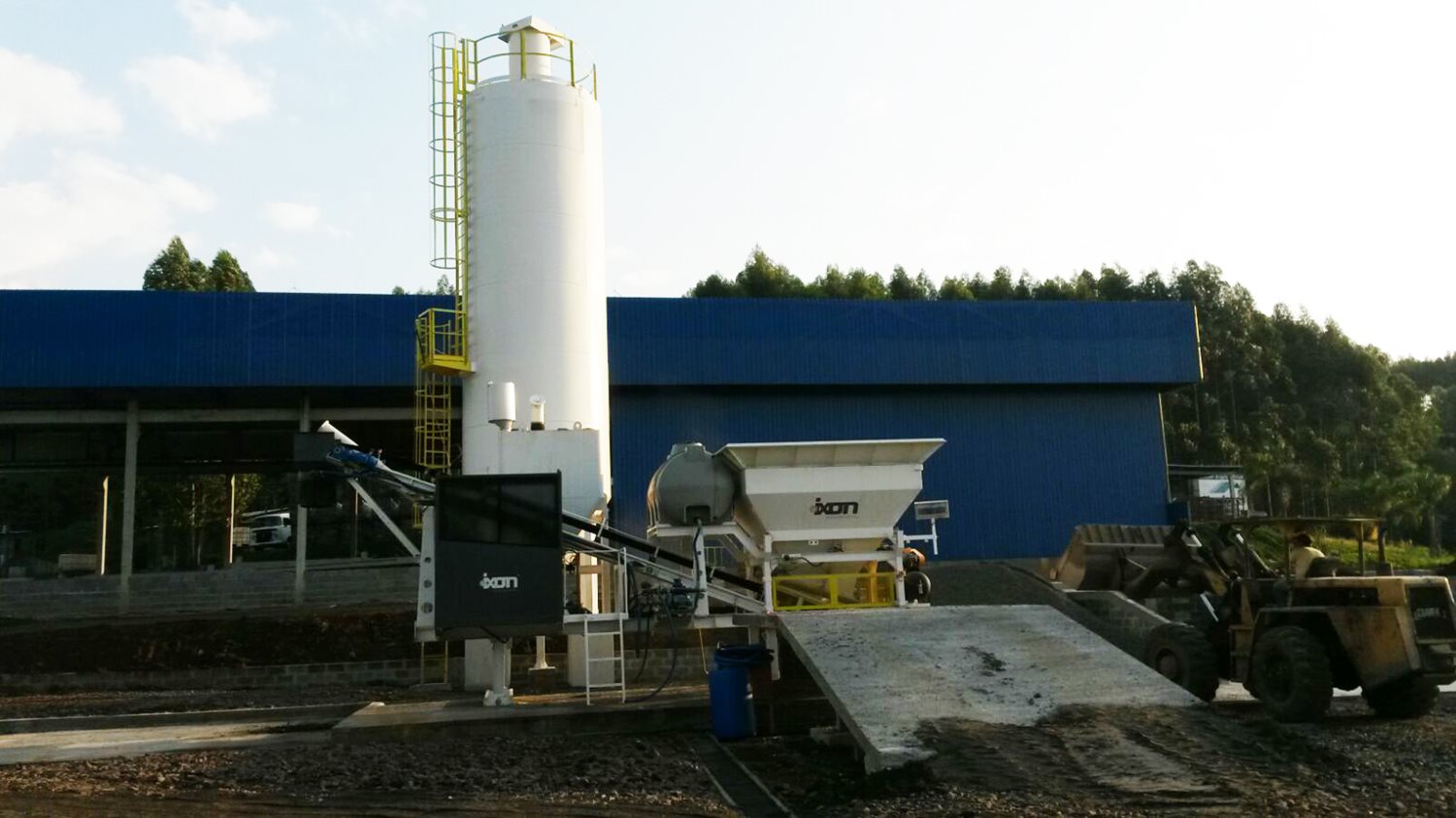

Thinking in practice solutions and quick assembly, the LINTEC-IXON launched the TGS SEMI-MOBILE with assembly time in one day and has dimensions that allow transport on truck. It is a compact equipment of easy operation tested and assembled in factory and it is not necessary to do foundation, area of support ensures stability in a soil properly leveled and compacted.

Nominal production capacity:

- Cement bag splitter - 20 to 30m³/h;

- Dosing of cement by weighing system and cement silo - 30 to 40m³/h.

Technical Characteristics:

- Aggregate weigh hopper of 10m³;
- Aggregate control by the loader operator with visualization of the weight on the display;
- Aggregate weigh hopper with 04 load cells of 05 t;
- Discharge gate with open/close by pneumatic cylinder;
- Conveyor with discharge chute and scraper;
-The receiving hopper of the cement bag splitter with manual dosing control, prepared to receive the kit weighing (optional);
- Cement silo 50 m³ (optional);
- Dosage of water and additive for flow meter;
- Water and additive control is programmed in panel (automatic);
- Water tank;
- Box additive;
- Air Compressor;
- Central mounted on mobile chassis;
- Control cabin with electrical panel and preparation for air-conditioning;
- Manual operation.
