Asphalt and Concrete Plants

LX 7001 - 70 TPH

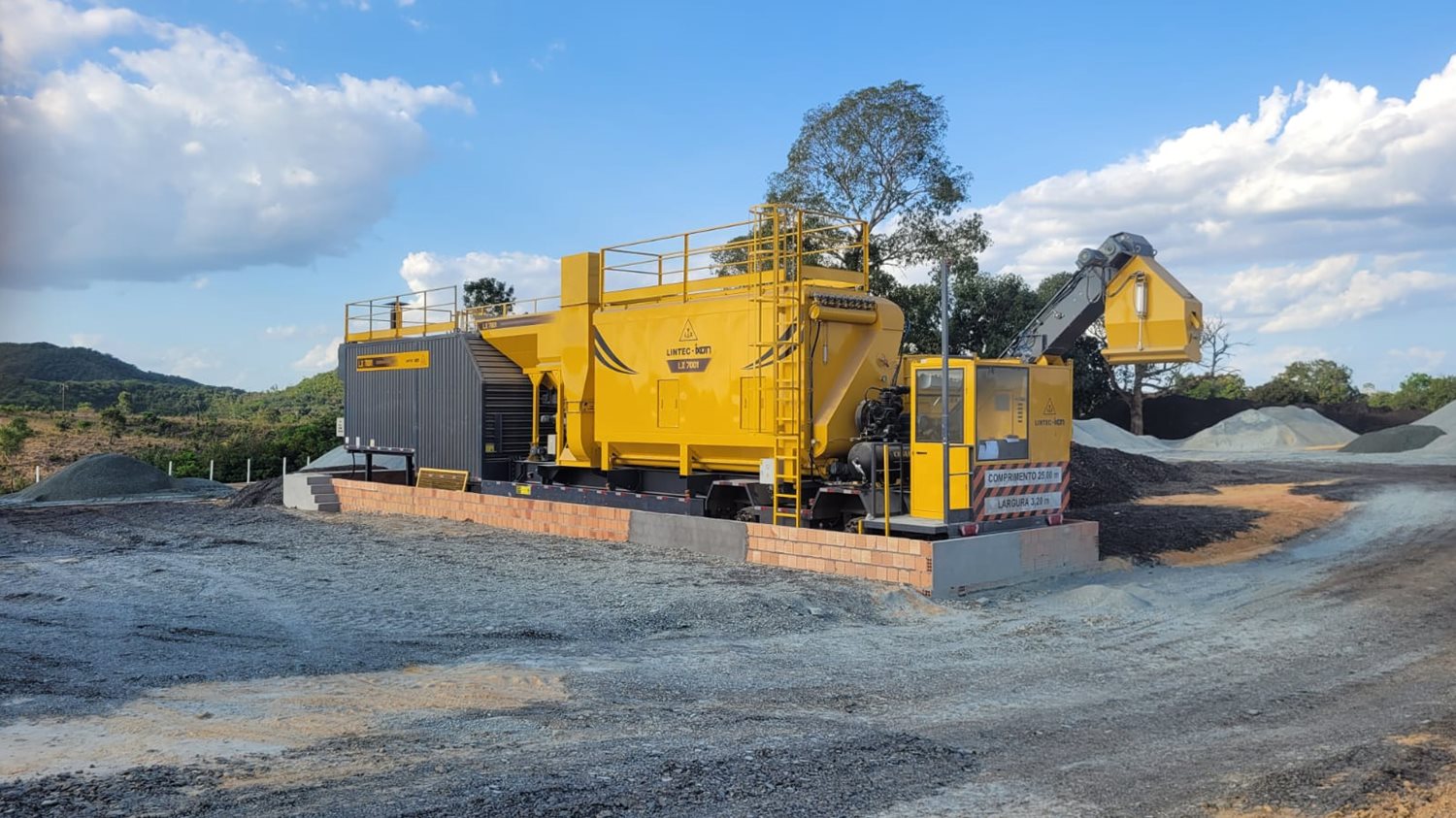

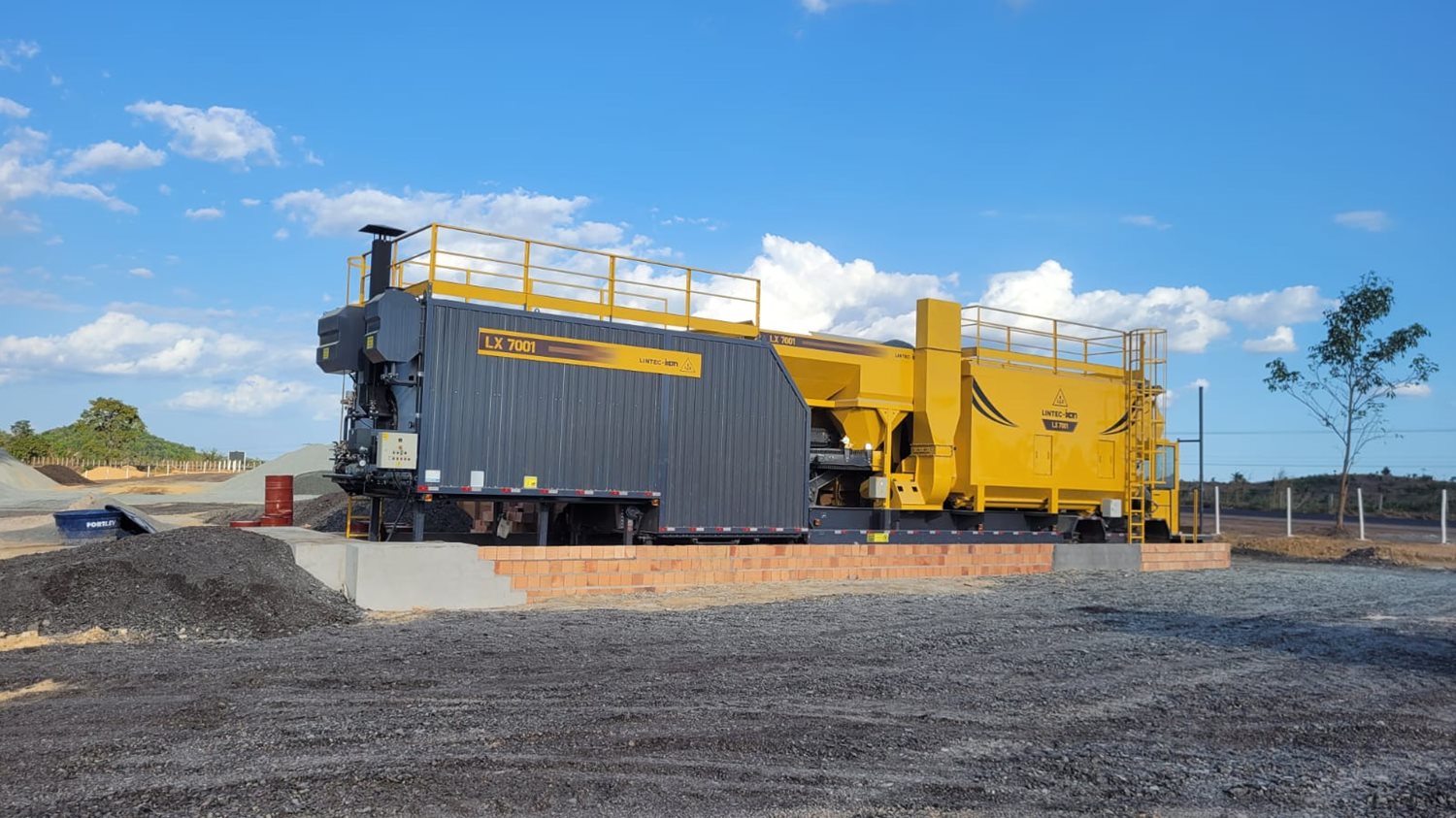

Super Mobile Asphalt Plant with production of 50 to 70 tph, with tanks included in the same chassis. This plant has automation, which enables emission of reports and remote access by internet to check failures, diagnoses or program updates.

Technical description:

- Plant on single chassis;
- 03 feed bins, 2x3m³ and 1x5m³. Fourth silo optional;
- Individual dosage conveyor for each silo with weigh bridge;
- Counterflow dryer with internal fins bolted fixing ring/body exclusive LINTEC-IXON;
- Burner with automatic actuation;
- External twin shaft mixer type;
- Drag elevator;
- Pulsating filtering system. The bag filter has a large filtration area (high durability and low replacement cost);
- Ready mix silo 1m³;
- Full automatic control system by supervisory or manual;
- Tanking system on board of the same chassis (40,000 L Bitumen + 15,000 L Fuel);
- Acclimatized control cabin.
