Asphalt and Concrete Plants

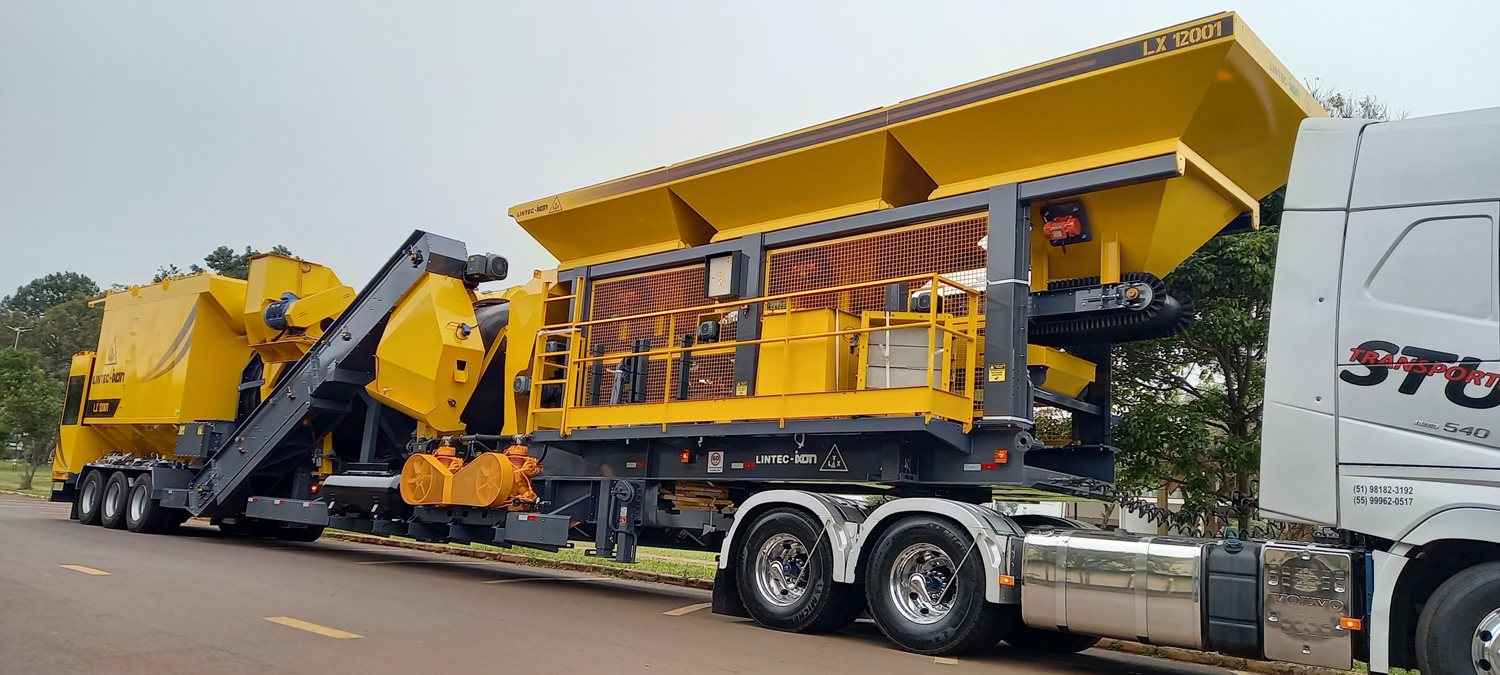

LX 12001 - 120 TPH

Counterflow asphalt plant with external mixer for production of high quality asphalt mixtures. This mobile plant has production of 100 to 120 t/h. It is fully automated, which enables wide range emission of reports and remote access by the factory to check failures, diagnoses or program updates. This equipment is the quick building and low maintenance cost.

Technical description:

- Plant on single chassis;
- 03 feed bins of 6m³ each one. Fourth silo optional;
- Individual dosage conveyor for each silo with weigh bridge;
- Counterflow dryer with internal fins bolted fixing ring/body exclusive LINTEC-IXON;
- Burner with automatic actuation;
- External mixer type twin shaft;
- Drag slag elevator;
- Pulsation filtering system. The bag filter has a large filtration area;
- Ready mix silo 1m³;
- Full automatic control system by supervisory or manual;
- Tanking system standard 60.000 liters (40,000 L Bitumen + 20,000 L Fuel);
- Acclimatized cabin.
