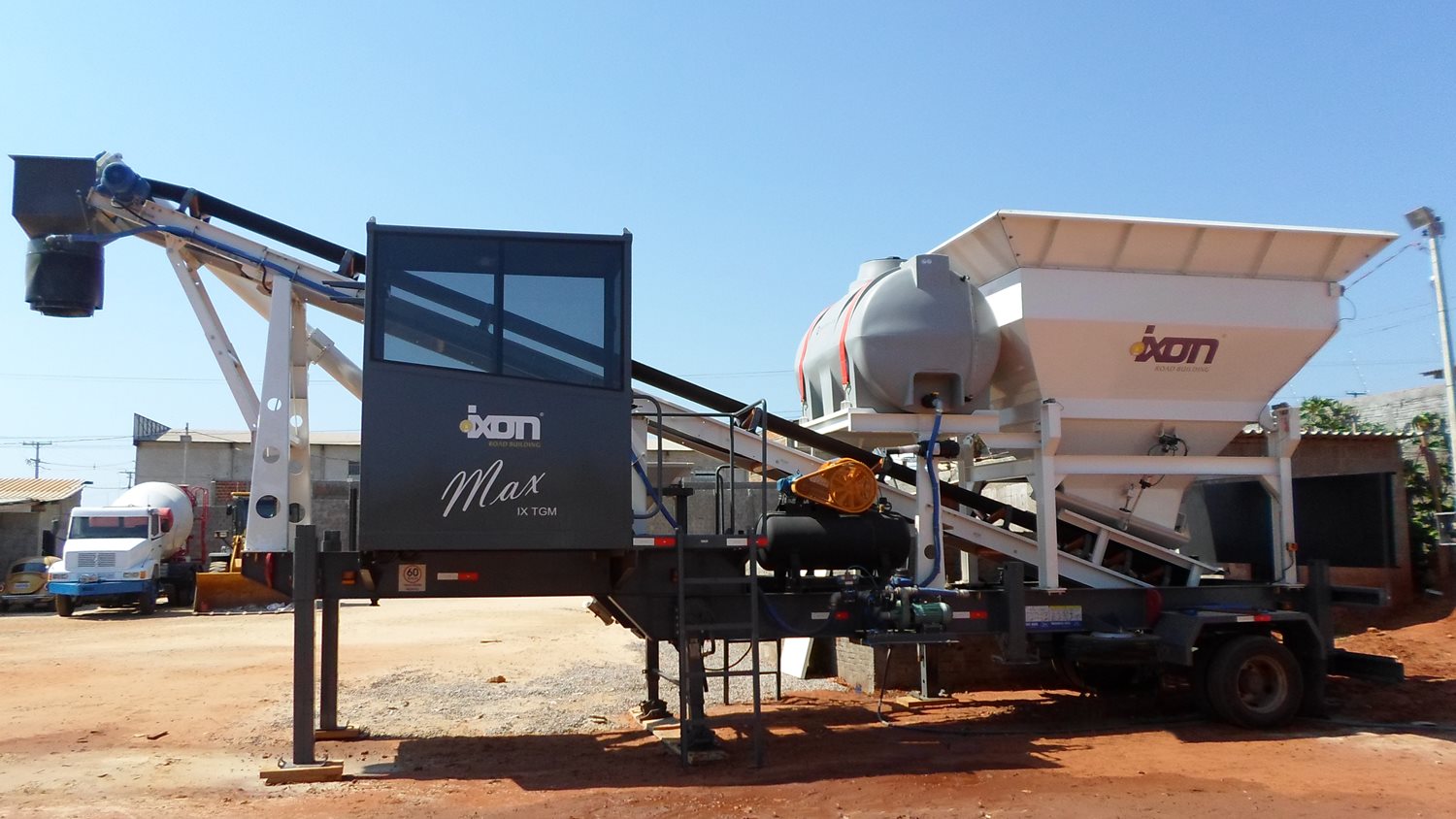

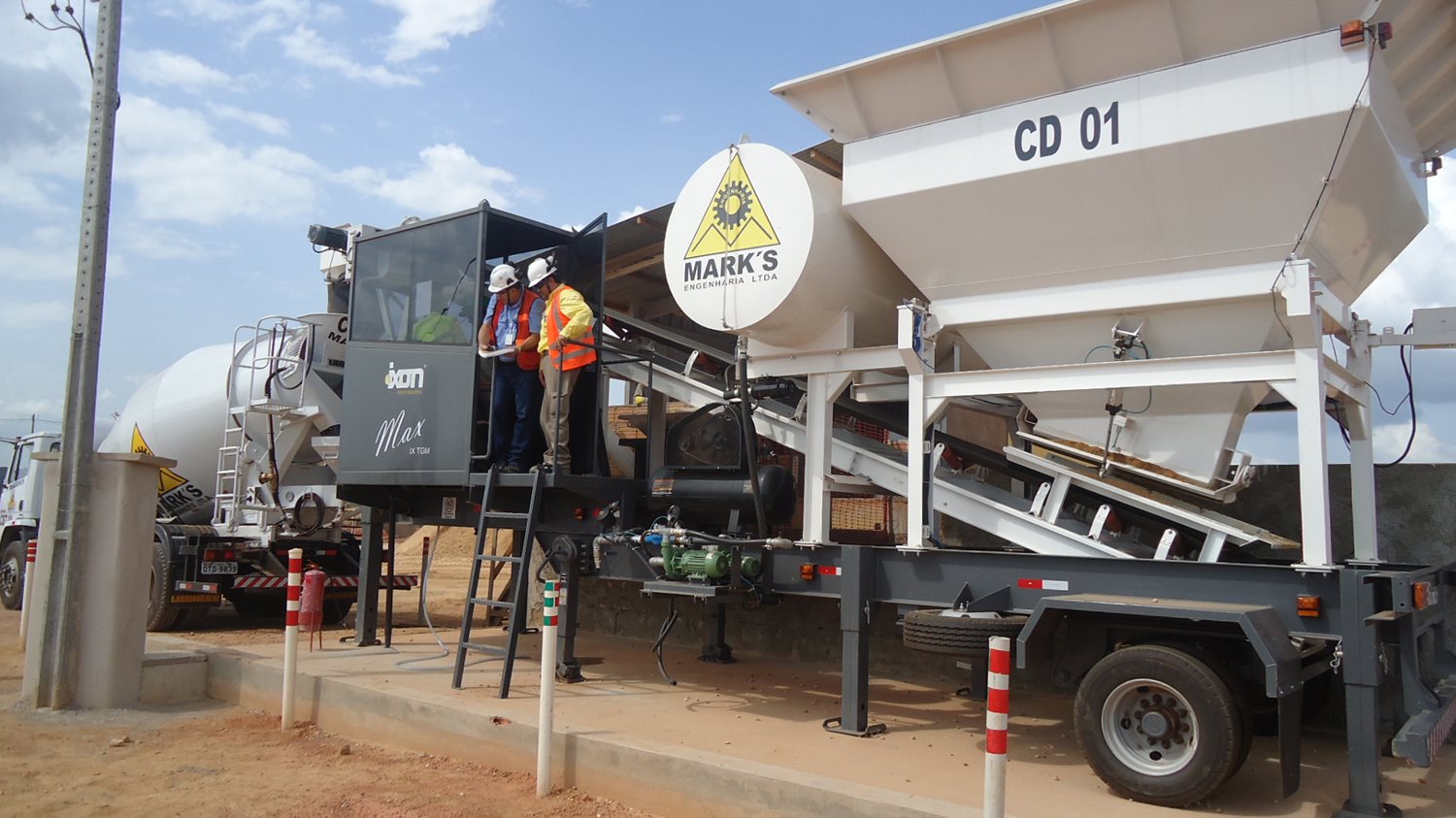

Mobile concrete dosing plant type TO GO. It is an equipment of easy operation and quick installation. It is not necessary to do foundation, area of support ensures stability in a soil properly leveled and compacted.

Nominal production capacity:
Cement bag splitter - 20 to 30m³/h (provided without cement silo);
Cement dosage by weighing and cement silo - 30 to 40m³/h.

Technical characteristics:
- Aggregate weigh hopper of 10m³;
Aggregate control by the loader operator with visualization of the weight on the display;
- Aggregate weigh hopper with 04 load cells of 05 t;
- Discharge gate with open/close by pneumatic cylinder;
- Conveyor with discharge chute and scraper;
- The receiving hopper of the cement bag splitter with manual dosing control, prepared to receive the kit weighing (optional);
- Cement silo 80m³ (optional);
- Dosage of water and additive by flow meter;
- Water and additive control is programmed in the panel (automatic);
- Water tank;
- Box additive;
- Air Compressor;
- Plant mounted on mobile chassis;
- Control cabin with electrical panel and preparation for air-conditioning;
- Manual operation.
