Asphalt and Concrete Plants

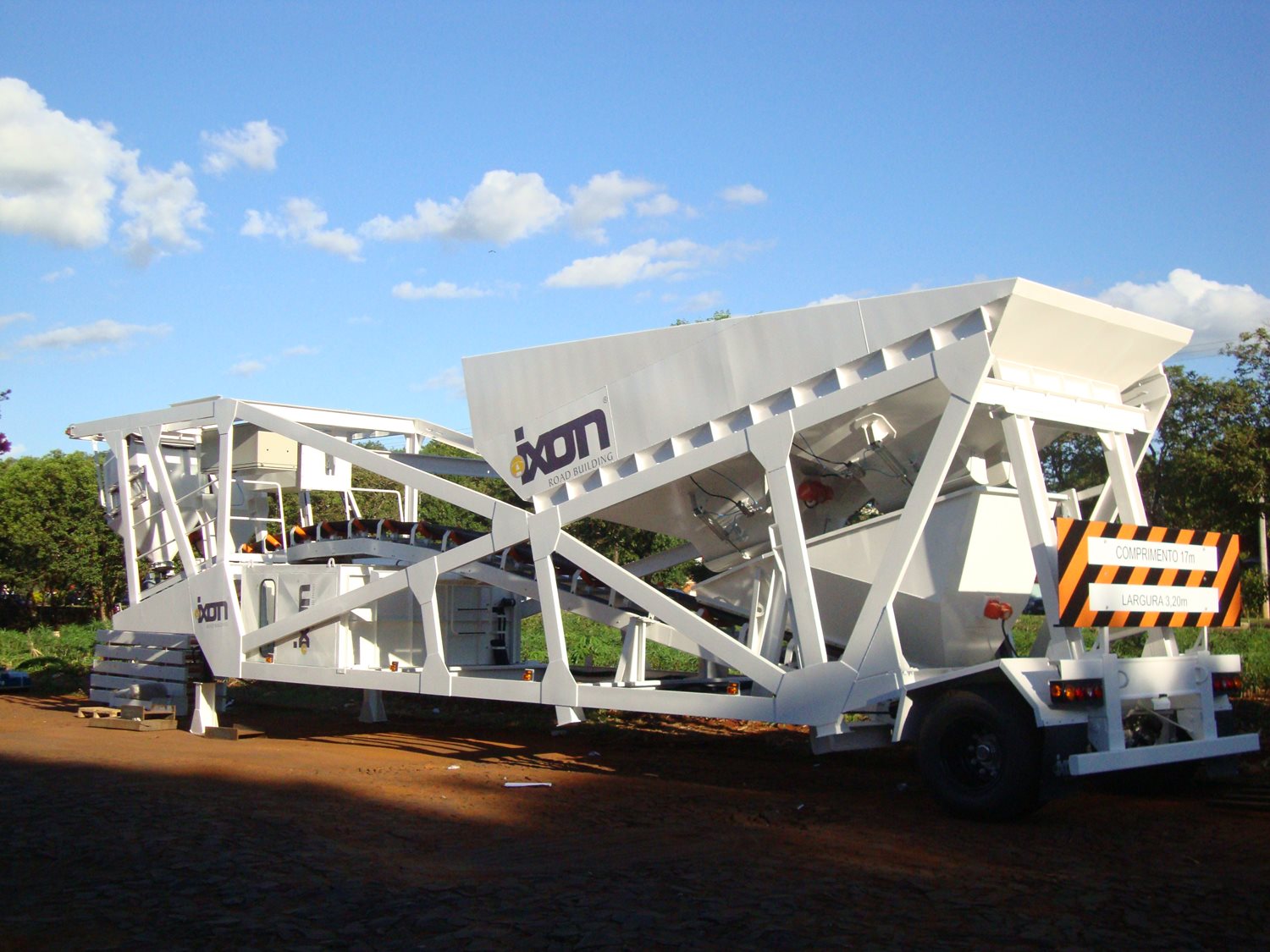

Concrete dosing plant with total mobility with aggregates weighing system. Fully automated plant, which enables a large range of reports emission and remote access by the factory for failures verifications, diagnostics or program updates. It can be provided with concrete mixers upon request. It is an equipment of easy operation and quick installation. It is not necessary to do foundation, area of support ensures stability in a soil properly leveled and compacted.

Technical characteristics:
- Nominal production capacity 50 to 60m³/h;
- Aggregate silo with 04 compartments - total capacity 40 m³;
- Water dosing system and additive by flow meter or by weighing;
- Cement weighing system - 1500 kg;
- Conveyor extractor with discharge chute and scraper;
- Air compressor included;
- Stairs and footbridges for access and maintenance;
- Control System totally automatic by supervisory/manual control;
- 01 metal silo with capacity of 80m³ with helical conveyor;
- 01 mobile chassis with reinforced structure;
- Cabin command included.
