CSD 1510

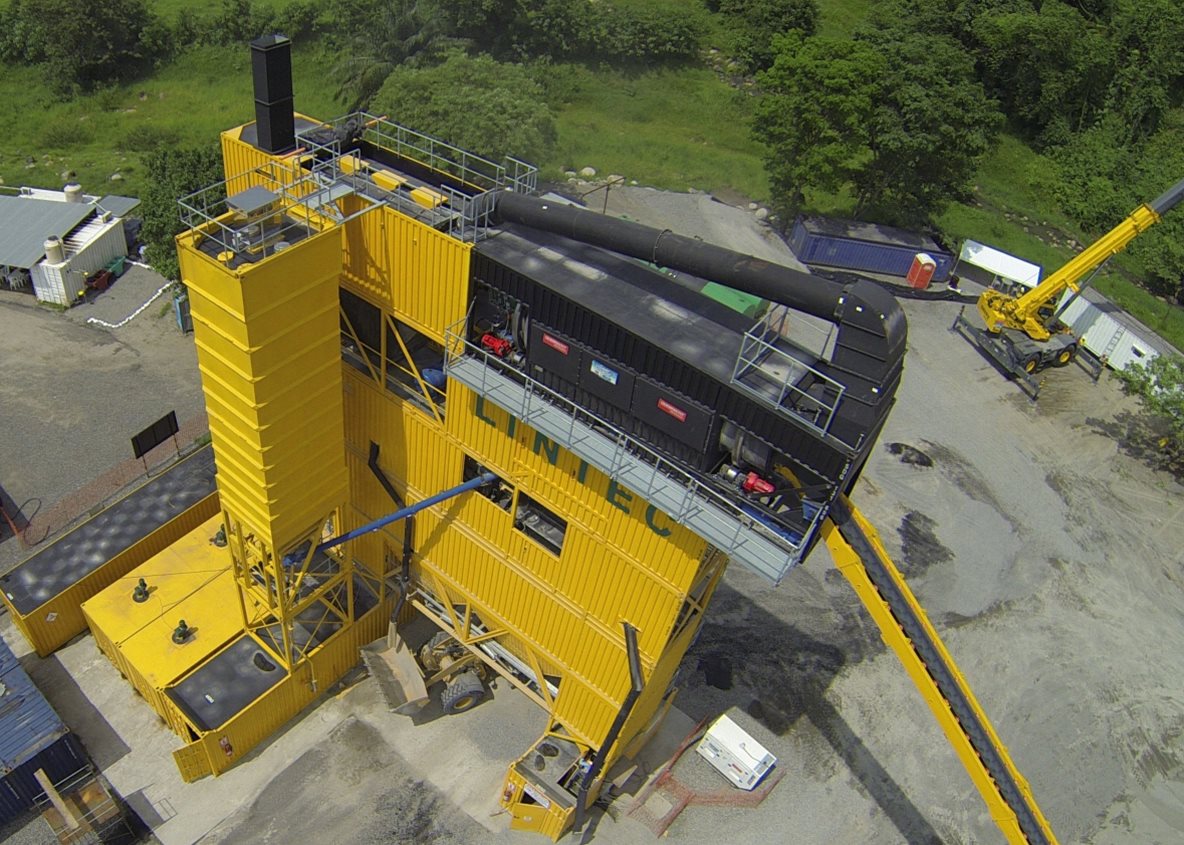

Containerized Asphalt Mixing Plant with a capacity of 120 - 140 t/h.

Technical description::

• - Batch size: 1700 kg
• - Batch cycle time: 45 s
• - Screen decks: 4 um
• - Hot stone Bin: 25 t
• - Reclaimed filler silo: 15 t
• - Aggreate temp. increase: 150 k
• - Exhaust gas temperature: 90-120 ºC
• - Burner capacity: 8 MW

Optional:

• - Tank of bitumen and fuel;
• - Silos of filler external;
• - External hot storage silos;
• - Liquid additives and fiber systems;
• - Systems for hot and cold recycled;
• - Prepared for LINTEC Warm Mix Asphalt System LEP.
