Asphalt and Concrete Plants

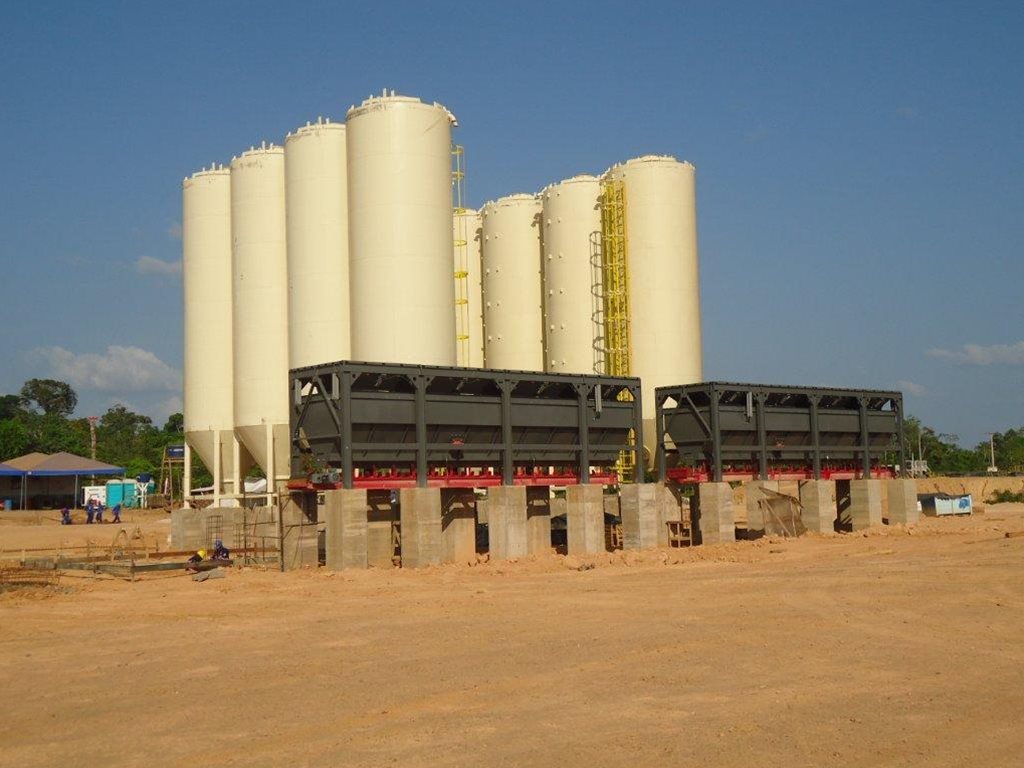

Concrete mixing plants have twin shaft compulsory mixer or planetarium mixer. Production is 30-120m³/h. They are developed to meet civil work infrastructure, and apply where the exigency of high quality concrete and strict technological control are necessary. These plants an additional advantage in relation to concrete dosing plants, in the reduce the use of cement, reaching a reduction of 5%.

Technical Characteristics:
-Nominal production capacity by request (30 - 120m³/h);
-04 aggregates bin with individual capacity of 15m³ (quantities of capacities and different volume by request);
-Aggregates weighing by a weighing system below of aggregates bin for cycle of 8m³;
-Gates with drive by pneumatic;
-Extractor conveyor to transport aggregates with distinctive profile and large width, eliminating the need of a lateral restraint;
-Inclined conveyor to transport aggregates with discharge chute and scraper;
-1 to 5 Silos (verified the need) capacity of 80 m³ (100 t) and individual supporting structure (different capacities on request);
-Automatic control system, which allows the emissions of wide range of reporting and remote access by the factory for verification failures, diagnosis or program updates. Semi-automatic - optional;
- Planetary mixer or twin shaft compulsory mixer on the required application.
